High Capacity Sea Sand Dredger With 1.8m Cutter Head Diameter And 550mm Discharge Pipe
Product Specifications
| Attribute | Value |
| Hydraulic Systems | Rexroth |
| Dredging Depth | 14m |
| Material | Marine Steel |
| Work Site | River, Lake, Sea, Pond |
| Power | Diesel Engine |
| Cutter Head Diameter | 1.8m |
| Discharge Pipe Diameter | 550mm |
| Anchor Winch | Electric/Hydraulic |
Product Overview
The cutter suction sand dredger is a powerful vessel specifically designed for efficient sand dredging operations in water bodies including rivers, lakes, and coastal areas. Its 1.8m cutter head diameter with sharp rotating blades enables effective excavation and suction of sand particles from the seabed.
Constructed from durable marine steel, this dredger offers exceptional longevity and stability in harsh marine environments. The 550mm discharge pipe diameter ensures efficient transport of dredged material to designated locations with continuous flow for maximum operational efficiency.
Key Features
- Product Name: Sand Dredger
- Function: Sand Dredging
- Total Power: 1662kw
- Condition: NEW And In Stock
- Dredging Capacity: Up To 800 Cubic Meters Per Hour
- Hydraulic Systems: Rexroth
Technical Parameters
| JMD550 22inch River Cutter Suction Sea Sand Dredger |
| Dredging Pump | Dia. Discharge pipe: 550mm |
| Head | 65m |
| Max. Working capacity | 900m3/h |
| Discharge distance | 3000m |
| Dredging depth | 14m |
| Diesel Engine | 1306KW | Cummins |
| Hydraulic Auxiliary engine | 336KW | Cummins |
| Emergency Generator | 20KW | WEICHAI |
| Total power | 1662KW |
| Oil Consumption | 250L/H |
| Hull Dimension | LOA*W*D: 42m×7.5m×2.0m |
| Hydraulic system | Hydraulic pump: VICKERS America (Joint-venture) |
| | Hydraulic Motor: Italy SAI technology(Joint-venture) |
| | Valves: REXROTH Germany (Joint-venture) |
| Operating system | SIEMENS PLC(Imported from Germany) |
| Ladder winch | Tension: 120KN |
| Swing winch | Tension: 120KN |
| Cutter Head | Crown-like: Φ1800mm |
| Power | 200KW |
Applications
The JMD550 sand dredger is ideal for port maintenance, channel deepening, and land reclamation projects. Its powerful hydraulic systems with Rexroth components ensure precise control during operations, making it suitable for various soil types including fine sand, clay, silt, and coarse sand in both inland and coastal waters.
Customization Options
Customize your sand dredger with our Product Customization Services:
- Brand Name: Jin Meng
- Model Number: JMD550
- Place Of Origin: China
- Certification: ISO
- Minimum Order Quantity: 1 Set
- Price: $500000-$800000
- Packaging Details: Bulk
Additional Customization Features
- Anchor booms installation
- Spud carriage installation
- 5 anchors for better balance
- Hydraulic driving for spud flat down
- Extra dredging pump for increased depth (20-30m)
- Booster station for extended discharge distance
Technical Support & Services
Our comprehensive support includes installation assistance, troubleshooting, maintenance checks, and operator training programs to ensure optimal performance and safe operation of your dredging equipment.
Packaging & Shipping
The dredger is securely packaged in wooden crates for safe transportation. We offer worldwide shipping with delivery typically within 30 days. Annual production capacity of 20 sets ensures steady availability.
Product Gallery
3 sets JMD550 22inch River cutter suction sand dredger newly made in stock

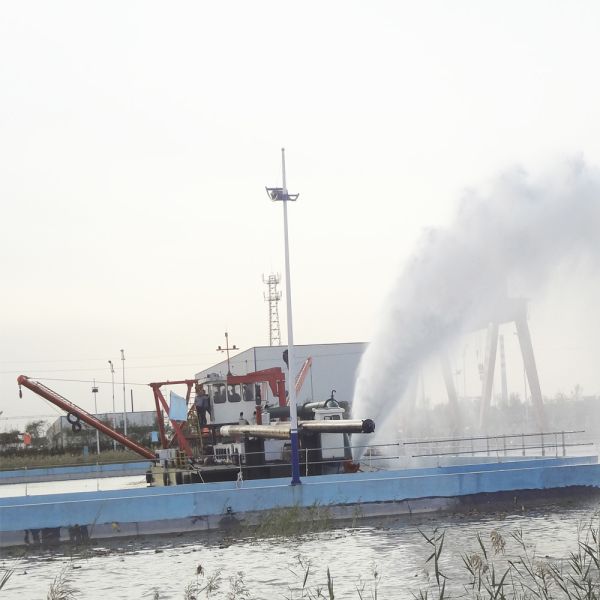

JMD550 22inch river cutter suction sand dredger in working site
JMD550 22inch river cutter suction sand dredger assembly and training
