200kw Cutter Head Power Diesel Dredgers for Dredging in Canals and Channels
| Attribute | Value |
| Total Power | 1662kw |
| Maximum Dredging Depth | 14m |
| Dredge Pump Capacity | 4000m3/h |
| Suction Diameter | Up To 600 Mm |
| Warranty | 1 Year |
| Sand Pump Brand | Shijiazhuang Industrial Factory |
| Dredge Type | Cutter Suction Dredger |
| Discharge Diameter | Up To 550 Mm |
Diesel Dredgers Description
Our diesel dredgers are versatile and powerful machines designed for demanding dredging applications. Equipped with high-capacity dredge pumps and large cutter suction systems, these dredgers excel in various projects including river dredging, sand mining, and land reclamation.
The 4000m3/h dredge pump capacity enables efficient movement of large material volumes, while the 1.8m cutter diameter effectively handles tough dredging conditions for maximum productivity.
The dredger features a modular design with dismantle-and-box structure hull, allowing easy transportation by road, rail, or container. The power system can be configured as electric or diesel-driven to meet specific requirements.
Key Features
- Product Name: Diesel Dredges
- Total Power: 1662kw
- Dredge Cutter Diameter: 1.8m
- Control: SIEMENS PLC
- Suction Diameter: Up To 600mm
- Testing: Empty Running Before Ex-factory
JMD550 Diesel Dredger Technical Parameters
| Dredging Pump | Dia. Discharge pipe: 550mm |
| Head | 65m |
| Max. Working capacity | 900m3/h |
| Discharge distance | 3000m |
| Dredging depth | 14m |
| Diesel Engine | 1306KW | Cummins |
| Hydraulic Auxiliary engine | 336KW | Cummins |
| Emergency Generator | 20KW | WEICHAI |
| Total power | 1662KW |
| Oil Consumption | 250L/H |
| Hull Dimension | LOA*W*D: 42m×7.5m×2.0m |
Applications
Ideal for various dredging scenarios including:
- River and channel dredging
- Port and harbor maintenance
- Land reclamation projects
- Sand mining operations
- Desilting lakes and reservoirs
Effective in diverse soil conditions including hard sand, sludge, clay, and marine sediments.
Customization Options
We offer comprehensive customization services including:
- Anchor boom configurations
- Spud carriage systems
- Additional underwater dredging pumps (20-30m depth capability)
- Booster stations for extended discharge distances
- Hydraulic driving systems for safe water transport
Support and Services
Our comprehensive support package includes:
- On-site installation guidance by experienced engineers
- Operator training programs
- 10-15 day installation and testing period
- Performance testing in actual working conditions
- Remote technical support
Packaging and Shipping
All dredgers are securely packaged for safe transportation with:
- Sturdy protective packaging
- Ample padding materials
- Tracked shipping services
- Timely delivery commitments
Product Gallery

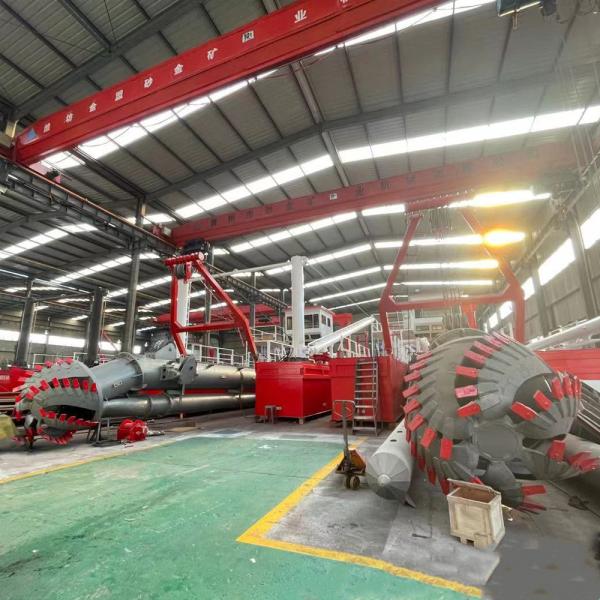

Manufacturing Facility
JMD550 in Operation - Maldives Project
Dredger Close-up View
On-site Operation
Cutter Head Installation
Dredging Operation
Inventory Ready for Delivery
Dredger Profile View
